Suzhou Blauberg Motoren Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm blauberg bc-b400e-ec-05 400mm ec rov qab nkhaus centrifugal kiv cua hauv Suav teb. Txais tos mus yuav cov khoom lag luam wholesale zoo tshaj plaws hauv Suav teb ntawm no thiab tau txais cov lus hais los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.

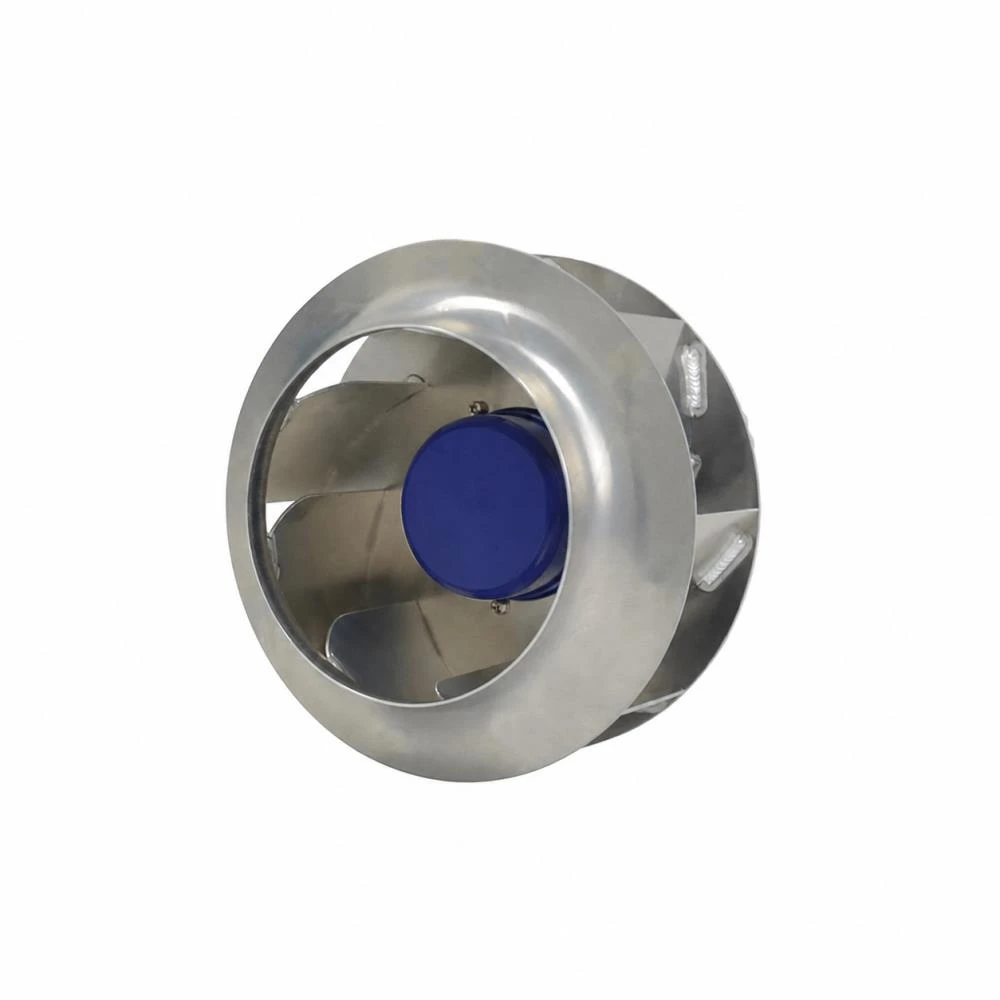

Lub Blauberg BC-B400E-EC-05 yog 400 hli EC rov qab-kho centrifugal kiv cua tsim los rau kev ua haujlwm tau zoo, txhim khu kev qha thiab tswj tau huab cua hauv kev lag luam thiab chaw ua haujlwm.
Cov ntaub ntawv yooj yim
| Qauv | BC-B400E-EC-05 | Yam khoom | EC Backward Curved Centrifugal Ntxuam |
| Theem | 1~ | Rated Voltage | 115 VAC |
| Ntau zaus | 50/60 Hz | Nominal Ceev | 1750 rpm ib |
| Max. Lub zog nkag | 400 W | Max. Input Tam sim no | 3.6 A |
| Suab Level | 79 dB (A) | Ambient Kub | -25 ° C rau +60 ° C |
| Daim ntawv pov thawj | CCC, CE, RoHS | Hnub tso tawm | Saib cov khoom specification |
Kev piav qhia
| Qhov ntev | 404 x 404 x 277.9 mm | Lub cev muaj zog | 102 hli |
| Cov khoom siv impeller | Hlau | Number of Blades | Saib cov khoom specification |
| Cua Flow Direction | Tag nrho ib ncig | Kev sib hloov | Clockwise, saib rau rotor |
| Rotor Nto | Cov tshuaj tsuag yas | Qhov hnyav | Saib cov khoom specification |
| Qib Kev Tiv Thaiv | IP55 | Rwb thaiv tsev Class | Chav F |
| Kev ua haujlwm hom | S1 | Cov kabmob | Pob bearing |
| Installation Txoj hauj lwm | Ib qho | Cooling Holes / Txiav- tawm | Rotor sab |
| Kev khiav dej num | 5% -90% RH | Cia Humidity | Saib cov khoom specification |
| Cia Kub | Saib cov khoom specification | Cable Ntev | 500+/-20 hli |
| Technical nta | 0-10 VDC/PWM tswj; RS485; xauv rotor, thermal, tshaj / undervoltage, overcurrent thiab soft-start tiv thaiv | ||
| Dielectric zog | Saib cov khoom specification | ||
Khoom siv
| 1 | Kev them nqi | 9 | Cov khoom siv cua txias Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Qhov project chav tsev |
| 3 | FFU Project | 11 | UAS Project |
| 4 | Khoos phis tawj chav txias | 12 | Cua Purifier Project |
| 5 | Rail Transit Air-Kub txias | 13 | Heat Exchanger Project |
| 6 | Cov Khoom Siv Hluav Taws Xob | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Txias Project |
| 8 | Cov khoom siv cua tshuab ua pa | 16 | Industrial Cooling System |
Huab cua Performance
Zuag qhia tag nrho Dimensions
Kev sib txuas hluav taws xob
| Kab | Kev sib txuas | Lub npe | Xim | Muaj nuj nqi |
|---|---|---|---|---|
| Hwj chim Line | PE | PE | Ntsuab / Daj | Tiv thaiv ntiaj teb |
| Hwj chim Line | U1 | L | Xim av | Nyob hlau |
| Hwj chim Line | U2 | N | Dub | Neutral hlau |
| Hwj chim Line | U3 | NC | Dawb | Nquag kaw cov xwm txheej tiv tauj, 250 VAC / 2 A |
| Hwj chim Line | U4 | COM | Grey | Cov xwm txheej sib cuag, 250 VAC / 2 A |
| Tswj Kab | U5 | RSA | Xim av | RS485 MODBUS -RTU RSA |
| Tswj Kab | U6 | RSB | Grey | RS485 MODBUS -RTU RSB |
| Tswj Kab | U7 | 0-10 V / PWM | Daj | Ceev- tswj cov tswv yim; PWM amplitude 10 V |
| Tswj Kab | U8 | FG | Dawb | RPM tso zis teeb liab |
| Tswj Kab | U9 | +10 V | Liab | Cov zis tawm sab nraud +10 VDC |
| Tswj Kab | U10 | GND | Xiav | Siv hauv av rau kev tswj interface |
Ceev lus teb: Vfg = 3–30 VDC; R >= 1000 x Vfg ohm.
Txuas lub zog thiab tswj cov kab nruj nruj raws li daim duab kos. Txheeb xyuas qhov ceev- tswj cov tswv yim ua ntej pib- nce, ceev ceev ntawm lub impeller thaum muaj zog, thiab xa mus rau cov khoom specification kom tiav kev nyab xeeb, khaws cia, txij nkawm thiab cov ntaub ntawv lav.
Download tau
BC -B400E-EC-05_Technical_Specification_EN
