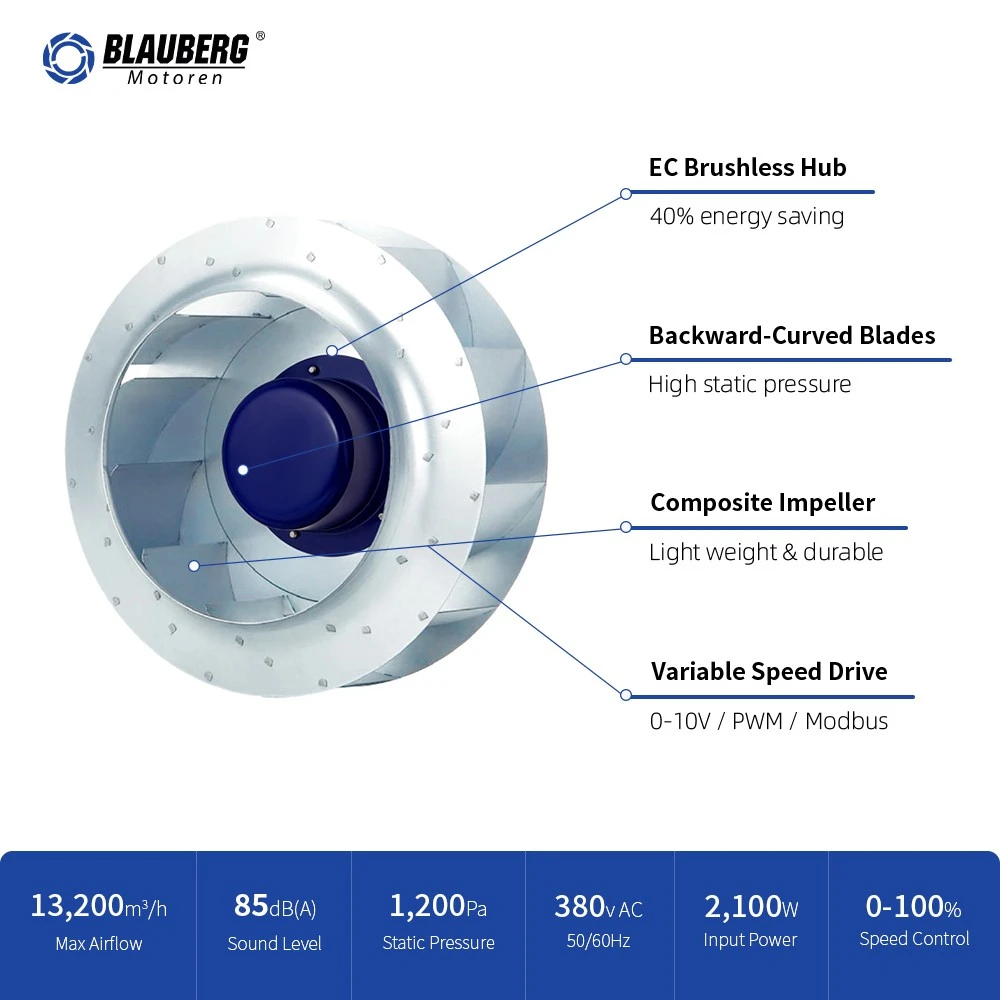

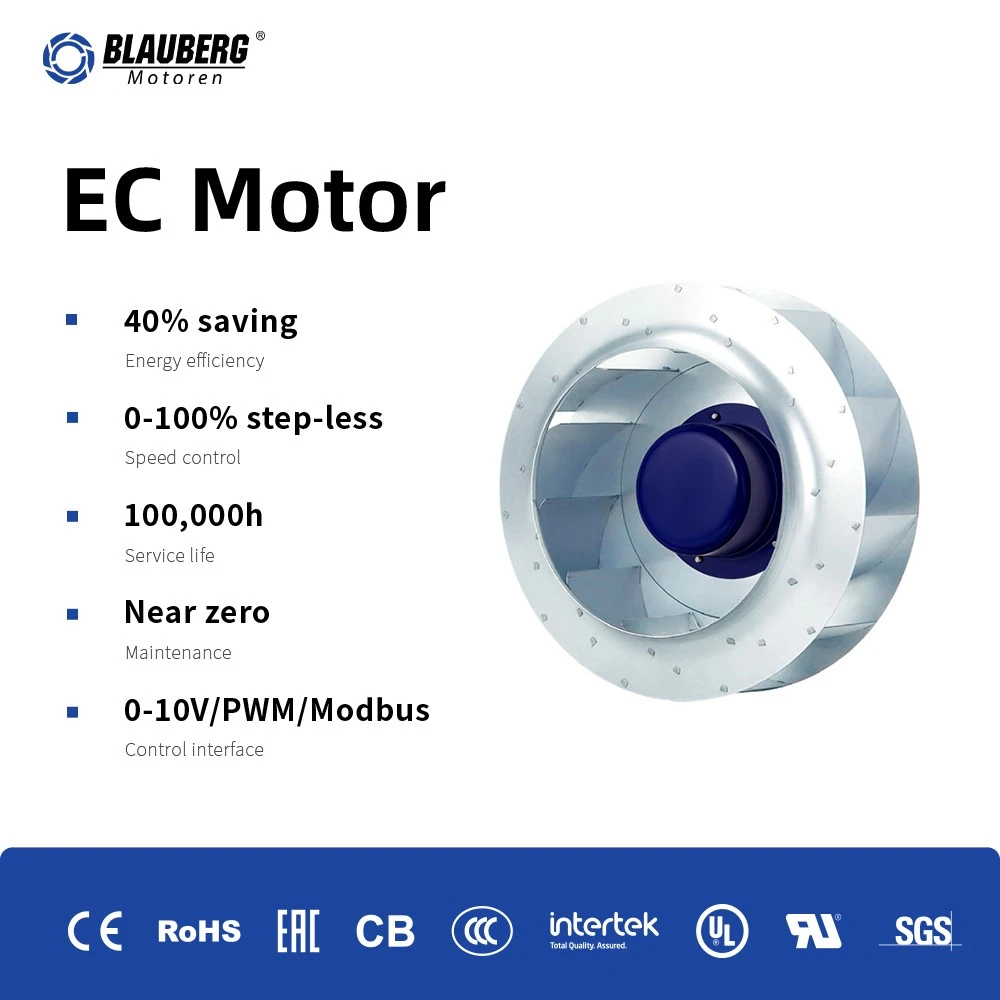

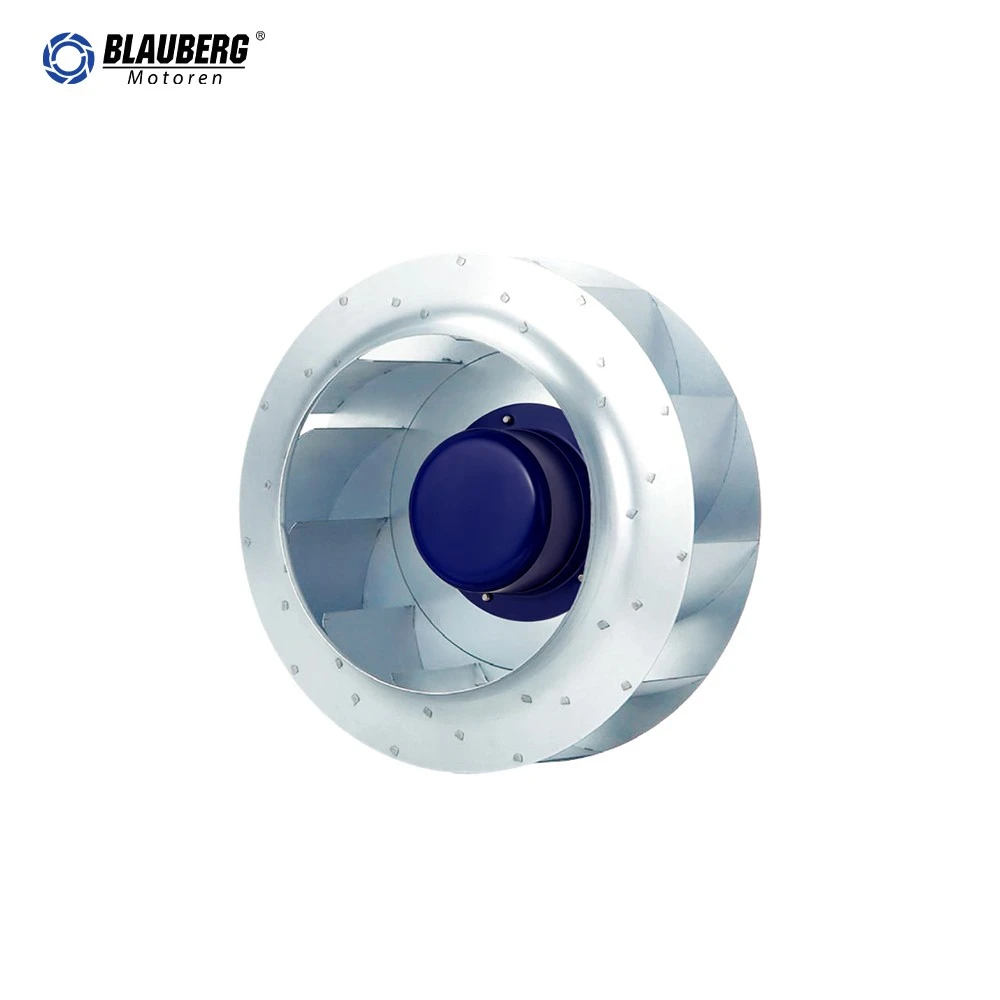

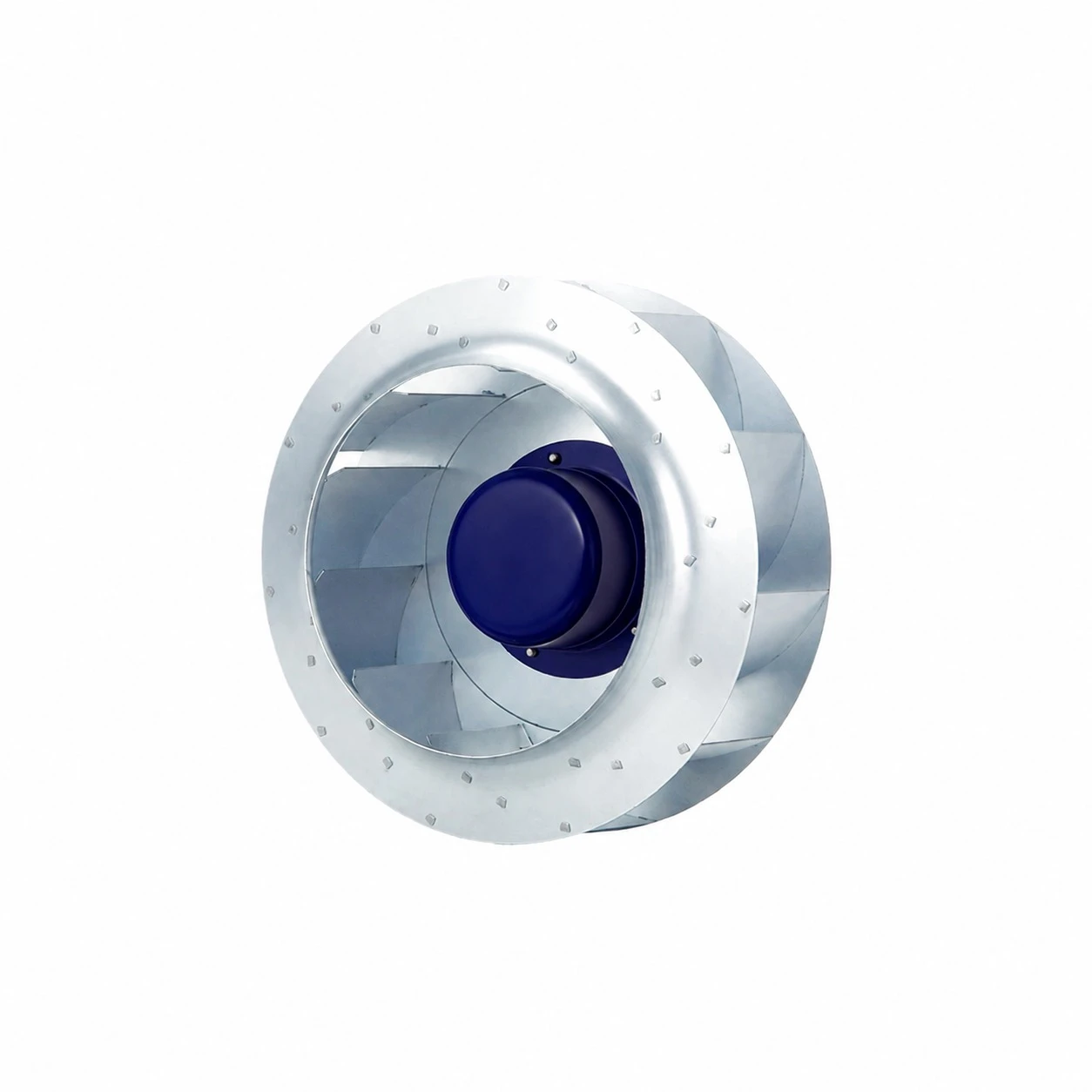

Suzhou Blauberg Motoren Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm blauberg bc-b310e-ec-05 310mm ec rov qab nkhaus centrifugal kiv cua hauv Suav teb. Txais tos mus yuav cov khoom lag luam wholesale zoo tshaj plaws hauv Suav teb ntawm no thiab tau txais cov lus hais los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
Cov ntaub ntawv yooj yim
| Qauv | BC-B310E-EC-05 | Hom kiv cua | Rov qab Curved Centrifugal Ntxuam |
| Nominal Dia | 310 hli | Hom Tsav | Sab nraud Rotor EC Tsav |
| Theem | Ib Theem | Nominal voltage | 115 VAC |
| Nominal Voltage Ntau | 92-138 VAC | Ntau zaus | 50/60 Hz |
| Nominal Ceev | 2000 ± 5% RPM | Maximum input zog | 400 W |
| Maximum Input Tam sim no | 3.6 A | Suab Level | 80 dB (A) |
| Ambient Kub | -25 rau +60 degree | Cov ntaub ntawv xwm txheej | Huab cua dawb |
Kev piav qhia
| Qauv | BC-B310E-EC-05 | Ntxuam Size | 319 × 319 × 219 hli |
| Lub cev muaj zog | 102 | Qhov hnyav | 5.5 kg ib |
| Ntim | 27 pcs / pallet | Cov khoom siv impeller | Aluminium alloy |
| Number of Blades | 6 | Kev taw qhia Airflow | Tag nrho ib ncig |
| Kev taw qhia ntawm kev sib hloov | Clockwise saib rau rotor | Rotor Nto | Plastic spraying (xiav) |
| Rotor Tsev | stretch | Qib Kev Tiv Thaiv | IP55 |
| Rwb thaiv tsev Class | F | Kev ua haujlwm hom | S1 |
| Cov kabmob | Pob bearing | Installation Txoj hauj lwm | Ib qho |
| Kev thauj mus los / cia kub | -40 rau +80 degree | Kev khiav dej num | 5% -90% RH |
| Cia Humidity | 5% -95% RH | Cable Ntev | 500 ± 20 hli; stackable nyob rau hauv 500 mm increments |
| Tswj Nta | 10 VDC tso zis; 0-10 VDC / PWM; PFC; RS485 MODBUS -RTU | Kev tiv thaiv lub cev muaj zog | Xauv rotor, thermal, tshaj / hauv qab -voltage thiab overcurrent tiv thaiv; pib mos |
| Dielectric zog | 1800 VAC / 50 Hz, 1 s; leakage Tsawg dua lossis sib npaug li 5.0 mA; tsis muaj kev cuam tshuam flashover | Kov tam sim no | Tsawg dua lossis sib npaug li 3.5 mA raws li IEC 60990 |
| Kev sib haum xeeb | CCC, CE, RoHS | Hnub tso tawm | 30 Peb 2024 |
Khoom siv
| 1 | Kev them nqi | 9 | Cov khoom siv cua txias Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Qhov project chav tsev |
| 3 | FFU Project | 11 | UAS Project |
| 4 | Khoos phis tawj chav txias | 12 | Cua Purifier Project |
| 5 | Rail Transit Air-Kub txias | 13 | Thaum tshav kub kub Exchanger Project |
| 6 | Cov Khoom Siv Hluav Taws Xob | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Txias Project |
| 8 | Cov khoom siv cua tshuab ua pa | 16 | Industrial Cooling System |
Huab cua Performance
Zuag qhia tag nrho Dimensions
Accessory ib feem: inlet nplhaib. M5 ntsia hlau siab tshaj plaws ntsia hlau-hauv qhov tob: 9 hli. M6 ntsia hlau: ntsia hlau-los ntawm. AC cable: PVC 5 × AWG 18. DC cable: PVC 6 × AWG 22.
Kev sib txuas hluav taws xob
| Kab | Kev sib txuas | Xim | Kev Ua Haujlwm / Kev Ua Haujlwm | |
| Hwj chim Line | PE | Ntsuab / Daj | Lub ntiaj teb tiv thaiv | |
| U1 | L | Xim av | Fais fab mov, nyob hlau; saib nameplate rau voltage range | |
| U2 | N | Dub | Fais fab mov, nruab nrab hlau; saib nameplate rau voltage range | |
| U3 | NC | Dawb | Cov xwm txheej relay, point A, ib txwm kaw, tawg rau qhov tsis ua haujlwm; Tiv tauj ntsuas 250 VAC / 2 A | |
| U4 | COM | Grey | Cov xwm txheej relay, point B, sib txuas; tiv tauj ntsuas 250 VAC / 2 A; cais los ntawm lub hwj chim thiab tswj interfaces | |
| Tswj Kab | U5 | RSA | Xim av | RS485 interface rau MODBUS, RSA; SELV |
| U6 | RSB | Grey | RS485 interface rau MODBUS, RSB; SELV | |
| U7 | Tswj ceev | Daj | 0–10 V / PWM (siab tshaj PWM amplitude 10 V) tswj input; SELV | |
| U8 | Teeb liab tawm tswv yim | Dawb | Tach tso zis, 5 pulses ib kiv puag ncig (pulses tuaj yeem hloov kho lossis hloov mus rau RD teeb liab); SELV | |
| U9 | +10V | Liab | Tsau voltage tso zis 10 VDC ± 5%, Imax . 10 mA; fais fab mov rau cov khoom siv sab nraud xws li potentiometers; SELV | |
| U10 | GND | Xiav | Siv hauv av rau kev tswj interface; SELV | |
Kev teeb tsa ceev
- Full Speed:luv liab thiab daj; tus kiv cua yuav khiav ntawm qhov nrawm.
- Voltage tswj 0-10VDC (± 0.2V):voltage siab tshaj 1.0 VDC pib kiv cua; voltage qis dua 0.5 VDC nres lub kiv cua.
- PWM Control:PWM 0% -100% (± 2%); amplitude 10 VDC (± 5%); zaus 1-10 kHz; Lub luag haujlwm siab tshaj 10% pib kiv cua thiab qis dua 5% nres nws.
- Potentiometer Control:siv 10 kΩ potentiometer; voltage siab tshaj 1.0 VDC pib kiv cua thiab qis dua 0.5 VDC nres nws.
Teeb liab tawm tswv yim:Cov kiv cua muab lub teeb liab tso zis ceev. Vfg thiab rub-up resistor txuas nrog los ntawm tus neeg siv khoom. Vfg=(3.3–30)VDC, R Ntau dua lossis sib npaug rau 1000 × (Vfg)Ω. Kev suav ceev: n=60f/a, qhov twg n yog kiv cua ceev, a yog pulses ib kiv puag ncig thiab f yog teeb liab tso zis waveform zaus. Tacho teeb liab cov ntawv tso zis: IC, Rb1, Rb2, Rfg, Vce, Vfg, GND thiab Qa.
Download tau
Download BC-B310E-EC-05 Product Specification
