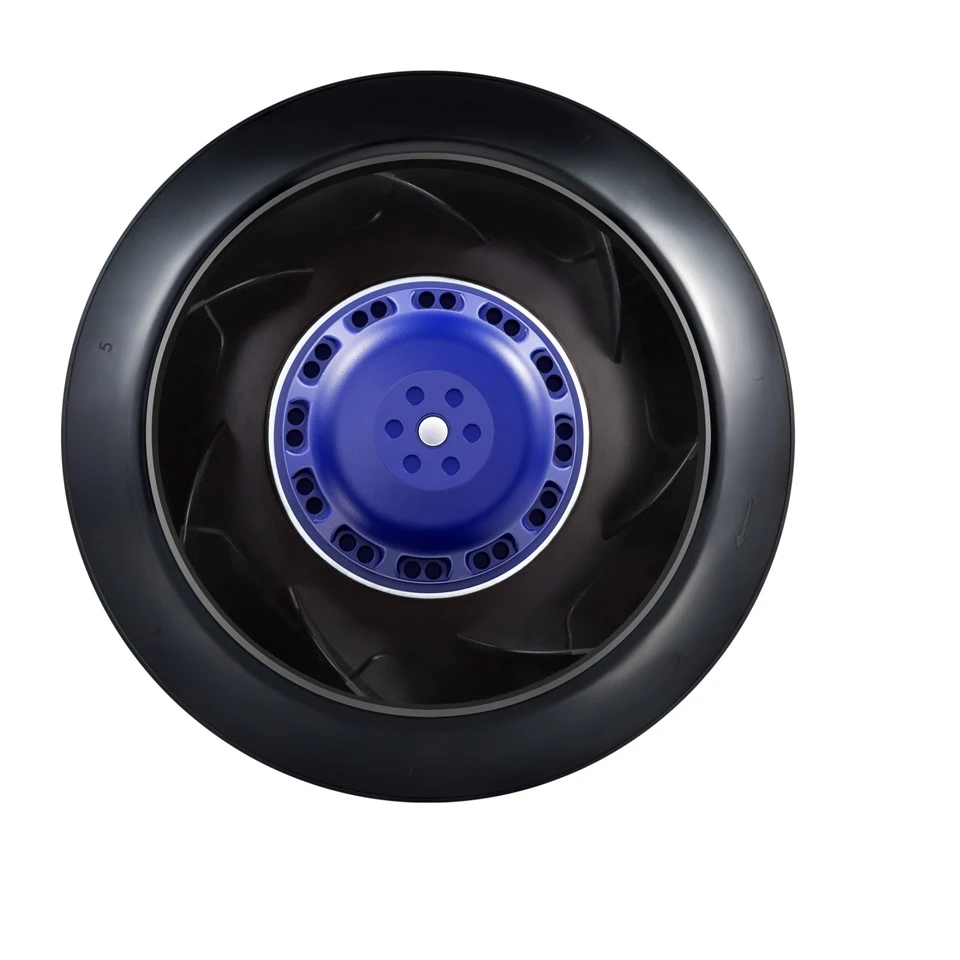

250mm Impeller Exhaust Centrifugal Ntxuam Ntxuam Motors Chaw tsim tshuaj paus

Daim ntawv pov thawj: UL, CE, ROHS, CCC, ISO;
Muaj peev xwm muab khoom: 400,000 pcs hauv ib xyoos;
MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi FOB.
HS Code: 8414593000

Xa kev nug

MOQ:100 pcs· Lub sij hawm ua tus qauv:15-25 hnub· Engineering qauv.7-10 hnub

Suzhou Blauberg Motoren Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm 250mm impeller pa centrifugal ntxuam kiv cua chaw tsim tshuaj paus hauv Suav teb. Txais tos mus yuav cov khoom lag luam wholesale zoo tshaj plaws hauv Suav teb ntawm no thiab tau txais cov lus hais los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.

Cov ntaub ntawv yooj yim

Qauv No.	BL-B250A-2E-D01-01	Flow Direction	Centrifugal
Siab	Tsawg Siab	Chaw taws teeb tswj	Tsis Muaj Chaw Taws Teeb
Kev siv	Rau kev sim, rau cua txias, rau kev tsim khoom	Hom kiv cua	AC Backward Curved Centrifugal Ntxuam
Pob	Pallet	Pob Loj	110 * 110 * 110 hli
Cov cim lag luam	Blauberg	Keeb kwm	Tuam Tshoj
HS Code	8414593000	Muaj Peev Xwm Ntau Lawm	50000 / xyoo

Kev piav qhia

Dimension:	250 * 250 * 100.8 hli	Hom kev ua haujlwm:	S1
Khoom siv impeller:	PA6+GF	Cov kabmob:	pob bearings
Khoom siv tsev:	SPCC + S45C	Kev tiv thaiv lub cev muaj zog:	tus kheej- rov pib dua TOP wired hauv
Kev taw qhia ntawm kev sib hloov:	clockwise, pom ntawm rotor	Cua Flow:	929.95 CFM / 1580 M³ / H
Number of Blades:	7	Static Pressure:	2.16 inH2O / 540 Pa
Tswj ceev:	0-10V DC / PWM	Lub neej expectancy:	50,000 teev (L10)
Ua haujlwm voltage:	184 ~ 270 VAC	Kev khiav dej num:	5% -90% RH
Hom kev tiv thaiv:	IP44	Teeb liab tso zis:	FG (Frequency Generator)
Rwb thaiv tsev chav kawm:	B	Kev lees paub tseeb:	UL, CE, ROHS, CCC, ISO

Khoom siv

1	Kev them nqi	9	Cov khoom siv cua txias Project
2	Chav ua noj haus pa tawm system	10	Qhov project chav tsev
3	FFU Project	11	AHU (Air Handing Unit) Project
4	Lub tshuab computer txias	12	Cua Purifier Project
5	Cua- kiv cua txias rau cov tsheb thauj neeg caij tsheb ciav hlau	13	Heater Exchanger Project
6	Cov khoom siv hluav taws xob	14	Telecom Container Project
7	FanGrid Project	15	Data Center Txias Project
8	Cov Cuab Yeej Siv Cuab Yeej Cuab Yeej	16
