Suzhou Blauberg Motoren Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm blauberg bl-f140c-ec-00 140mm ec pem hauv ntej nkhaus centrifugal ntxuam hauv Suav teb. Txais tos mus yuav cov khoom lag luam wholesale zoo tshaj plaws hauv Suav teb ntawm no thiab tau txais cov lus hais los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
Cov ntaub ntawv yooj yim
| Qauv | BL-F140C-EC-00 | Yam khoom | EC Forward Curved Centrifugal Ntxuam |
| Theem | 1~ | Rated Voltage | 115 VAC |
| Ntau zaus | 50/60 Hz | Nominal Ceev | 1950 RPM |
| Qhov siab tshaj plaws input zog | 70 W | Maximum Input Tam sim no | 1.7 A |
| Suab Level | 72 dB (A) | Ambient Kub | -25 rau +60 C |
| Cov ntawv pov thawj | CCC, RoHS | Kev tiv thaiv | IP55 |
Kev piav qhia
| Qhov ntev | 140 x 140 x 84 mm | Cov khoom siv impeller | Cov khoom siv yas |
| Kev sib hloov | Clockwise, saib los ntawm rotor sab | Rotor Nto | Hmoov coated |
| Rwb thaiv tsev Class | Chav B | Hom Lub Luag Haujlwm | S1 |
| Cov kabmob | Pob bearing | Lead Ntev | 500 +/-20 hli |
| Kev tiv thaiv lub cev muaj zog | Xauv-rotor, thermal, tshaj / undervoltage, overcurrent thiab mos- pib tiv thaiv | ||
| Kev khiav dej num | 5% -90% RH | Hom Tsav | Sab nraud -rotor EC lub cev muaj zog |
| Impeller khiav | Axial thiab radial<=0.5 mm | Cia | -40 rau +80 C; RH<=95% |
Khoom siv
| 1 | Kev them nqi | 9 | Cov khoom siv cua txias Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Qhov project chav tsev |
| 3 | FFU Project | 11 | UAS Project |
| 4 | Khoos phis tawj chav txias | 12 | Cua Purifier Project |
| 5 | Rail Transit Air-Kub txias | 13 | Heat Exchanger Project |
| 6 | Cov Khoom Siv Hluav Taws Xob | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Txias Project |
| 8 | Cov khoom siv cua tshuab ua pa | 16 | Industrial Cooling System |

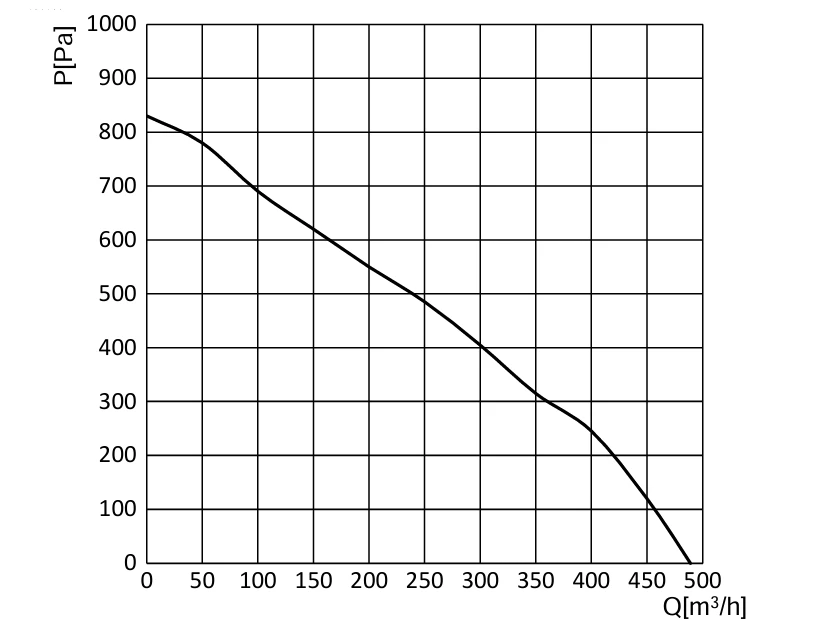

Huab cua Performance
Zuag qhia tag nrho Dimensions
Kev sib txuas hluav taws xob
| PE | Yellow/ntsuab | Tiv thaiv ntiaj teb |
| U1 / L | Xim av | Nyob tus neeg xyuas pib |
| U2 / N | Xiav | Neutral conductor |
| U4 / +10V | Liab | +10 VDC tso zis |
| U5/0-10V or PWM | Daj | Ceev- tswj cov tswv yim |
| U6 / FG | Dawb | Ceev cov lus tawm tswv yim tawm |
| U7 / GND | Xiav | Tswj hauv av |
Txuas lub hwj chim thiab tswj cov coj nruj nruj raws li daim duab thaiv.
Nco tseg
- Txuas lub zog thiab tswj cov kab nruj nruj raws li daim duab kos.
- Tsis txhob txuas lub teeb liab - tawm tswv yim xaim ncaj qha mus rau +10 V xaim lossis ib qho khoom siv DC sab nraud.
- Yog tias tus kiv cua tsis khiav tom qab pib, xyuas qhov ceev - tswj cov input voltage thiab xaim.
- Lub kiv cua yuav siv sijhawm ob peb feeb los pib; tsis txhob kov lub impeller lossis rotor thaum muaj zog.
- Tsis txhob rub cov hlua fais fab, poob lossis ntaus lub cev muaj zog, lossis yaug lub cev muaj zog nrog dej.
- Tsis txhob siv lub cev muaj zog ib leeg tsis muaj lub impeller lossis thauj khoom.
- Khaws cov khoom ntim rov qab rau hauv qhov chaw huv, qhov cua nkag ntawm -40℃rau +80℃thiab mus txog 95% RH.
- Nyeem cov khoom specification kom zoo ua ntej siv.
Download tau
BL-F140C-EC-00 Product Specification.pdf
