Suzhou Blauberg Motoren Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm blauberg gl-b225g-ec-m0 225mm ec rov qab nkhaus centrifugal plug ntxuam hauv Suav teb. Txais tos mus yuav cov khoom lag luam wholesale zoo tshaj plaws hauv Suav teb ntawm no thiab tau txais cov lus hais los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.

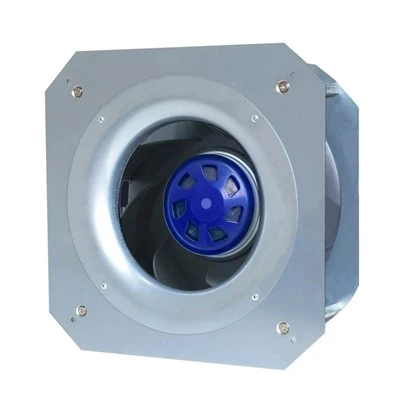

Lub Blauberg GL-B225G-EC-M0 yog 230 VAC EC rov qab nkhaus centrifugal plug ntxuam nrog PP + GF impeller thiab IP55 tiv thaiv. Nws ua haujlwm ntawm nominal ceev ntawm 2300 RPM thiab txhawb 0-10 V thiab PWM ceev tswj.
Cov ntaub ntawv yooj yim
| Qauv | GL-B225G-EC-M0 | Yam khoom | EC Backward Curved Centrifugal Plug Ntxuam |
| Theem | 1~ | Rated Voltage | 230 VAC ua |
| Voltage Ntau | 184-276 VAC | Ntau zaus | 50/60 Hz |
| Ntau zaus | 50/60 Hz | Nominal Ceev | 2300 RPM |
| Max. Lub zog nkag | 85 W | Max. Input Tam sim no | 0.7 A |
| Suab Level | 74 dB (A) | Ambient Kub | -25 ° C rau +60 ° C |
| Daim ntawv pov thawj | CCC, CE, RoHS | Hnub tso tawm | 23 Peb 2024 |
Kev piav qhia
| Qhov ntev | 270 x 270 x 132 mm | Cov khoom siv impeller | PP + GF |
| Kev sib hloov | Clockwise, saib rau rotor | Rotor Nto | Yas txau, xiav |
| Qib Kev Tiv Thaiv | IP55 | Rwb thaiv tsev Class | Chav B |
| Kev ua haujlwm hom | S1 | Cov kabmob | Pob bearing |
| Lub cev muaj zog | EC072 AC230V085W | Kev khiav dej num | 5% -90% RH |
| Cable Ntev | 500+/-20 hli | RoHS | CCC, CE thiab RoHS ua raws |
Khoom siv
| 1 | Kev them nqi | 9 | Cov khoom siv cua txias Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Qhov project chav tsev |
| 3 | FFU Project | 11 | UAS Project |
| 4 | Khoos phis tawj chav txias | 12 | Cua Purifier Project |
| 5 | Rail Transit Cua -Cov txias | 13 | Thaum tshav kub kub Exchanger Project |
| 6 | Cov Khoom Siv Hluav Taws Xob | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Txias Project |
| 8 | Cov khoom siv cua tshuab ua pa | 16 | Industrial Cooling System |
Huab cua Performance
Kev ua tau zoo ntawm huab cua yog ntsuas raws li AMCA 210 / GB 1236 kev teeb tsa qeb A. Cov txiaj ntsig siv tau raws li kev ntsuas ntsuas thiab yuav txawv nrog kev teeb tsa. Rau deviations los ntawm tus qauv configuration, xyuas cov tsis nyob rau hauv lub installation unit.
Zuag qhia tag nrho Dimensions
| 1 | AC Cable PVC 3 x AWG 20 |
| 2 | DC Cable PVC 4 x AWG 24 |
Kev sib txuas hluav taws xob
| Kab | Kev sib txuas | Lub npe | Xim | Muaj nuj nqi |
|---|---|---|---|---|
| Hwj chim Line | PE | PE | Ntsuab / Daj | Tiv thaiv ntiaj teb |
| Hwj chim Line | U1 | L | Xim av | Nyob hlau |
| Hwj chim Line | U2 | N | Xiav | Neutral hlau |
| Tswj Kab | U4 | +10V | Liab | Cov zis tawm sab nraud +10 VDC |
| Tswj Kab | U5 | Tswj ceev | Daj | 0-10 V thiab PWM-tshaj tawm tswv yim; Maximum PWM 10 V |
| Tswj Kab | U6 | Teeb liab tawm tswv yim | Dawb | RPM tso zis teeb liab kab, 2 pulses ib kiv puag ncig |
| Tswj Kab | U7 | GND | Xiav | Hauv av |
Kev nrawm nrawm yog tau los ntawm luv luv liab +10 VDC xaim thiab daj VSP xaim. Rau 0-10 VDC tswj, kiv cua pib saum 1.0 VDC thiab nres hauv qab 0.5 VDC. PWM tswj siv qhov pom zoo 10 VDC amplitude thiab 1-10 kHz zaus; tus kiv cua pib tshaj 10% lub luag haujlwm thiab nres qis dua 5% lub luag haujlwm. Ib qho 10 kOhm potentiometer kuj tseem siv tau.
The fan provides a speed output signal. The Vfg supply and pull-up resistor are connected by the customer. Vfg = 3.3-30 VDC; R >= 1000 x Vfg Ohm.
Nco tseg
Txuas lub zog thiab tswj cov kab nruj me ntsis raws li daim duab thaiv kom tsis txhob muaj kev puas tsuaj rau lub kiv cua.
Tsis txhob txuas lub teeb liab dawb xaim ncaj qha mus rau lub teeb liab liab lossis ib qho hluav taws xob DC sab nraud.
Yog tias tus kiv cua tsis ua haujlwm tom qab pib, xyuas qhov ceev - tswj qhov voltage input. Txhawm rau tiv thaiv kev raug mob los ntawm kev pib kiv cua tam sim ntawd- nce, tsis txhob kov lub impeller lossis rotor tom qab siv fais fab.
Tus kiv cua siv sijhawm ob peb feeb los pib tom qab lub hwj chim - qhib. Tsis txhob kov lub impeller lossis rotor thaum muaj zog lossis ua haujlwm ntawm qhov nrawm.
Ua ntej hloov lub hwj chim, xyuas kom meej tias lub cev muaj zog tau teeb tsa kom ruaj ntseg los tiv thaiv lub cev muaj zog thiab kev raug mob ntawm tus kheej.
Tsis txhob rub lub hwj chim qaum. Ib lub zog fais fab puas yuav tsum tau hloov los ntawm cov chaw tsim khoom kom tsis txhob muaj hluav taws xob poob siab.
Tsis txhob poob lossis cuam tshuam lub cev muaj zog.
Tsis txhob ntxuav los yog yaug lub cev muaj zog, vim tias kev ua haujlwm rwb thaiv tsev txo qis tuaj yeem ua rau cov dej xau thiab tus kheej txaus ntshai.
Rau kev ua haujlwm customized sab nraum qhov kev pom zoo ua haujlwm, sab laj Blauberg thiab paub meej tias tsim nyog ua ntej siv.
Tom qab lub kiv cua nres, lub cev lub cev yuav kub hnyiab tau rau lub sijhawm luv luv. Ceev faj kom tsis txhob kub hnyiab.
Thaum lub sij hawm installation, xyuas kom meej tias tsis muaj khib nyiab nkag mus rau hauv lub casing los yog lwm yam vaj tse; ntxuav sab hauv yog tias tsim nyog.
Ua ntej kev teeb tsa thiab kev ua haujlwm, tig lub rotor ntawm tes thiab paub meej tias tsis muaj kev sib tsoo, cuam tshuam lossis jamming.
Lub cev muaj zog yog ib feem ntawm lub kiv cua thiab yuav tsum tsis txhob ua haujlwm yam tsis muaj impeller lossis load.
Khaws cov khoom ntim rov qab rau hauv qhov chaw huv, qhov cua nkag ntawm -40 ° C rau +80 deg C, cov av noo tsis tshaj 95%, tsis muaj roj corrosive thiab tsawg kawg 15 cm saum av.
Nruab lub kiv cua tawm ntawm qhov ncav cuag ntawm cov menyuam yaus thiab tsis txhob cia cov menyuam yaus siv cov khoom no.
Qhov kawg txhais txoj cai ntawm no specification belongs rau Blauberg.
Lub neej thiab kev saib xyuas, Warranty
Lub neej tsim yog 50,000 xuab moos, txwv los ntawm lub pob- bearing lub neej ntawm 40 deg C. Qhov kev pab cuam lub neej nws txawv nrog kub, av noo, installation txoj kev, kiv cua load thiab lwm yam kev khiav hauj lwm tej yam kev mob.
Ntxuav thiab tuav lub kiv cua txhua 3-6 lub hlis raws li qhov chaw ua haujlwm.
Tag nrho - lub sijhawm lav lub tshuab yog ib xyoos txij li hnub xa khoom. Kev ua tau zoo- cuam tshuam txog kev ua tsis tiav raug them; Kev puas tsuaj tshwm sim los ntawm kev sib tsoo tsis raug, kev tuav, tus txiv neej- ua kev puas tsuaj, kev puas tsuaj ntuj los yog kev quab yuam majeure tsis suav nrog.
Download tau
GL-B225G-EC-M0 Product Specification.pdf
