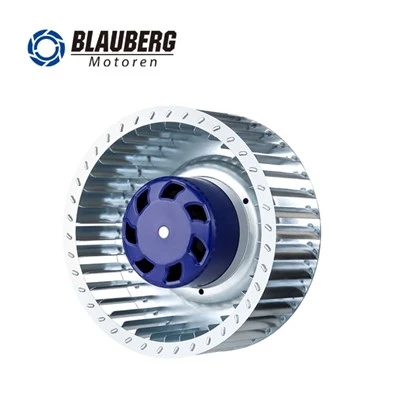

Suzhou Blauberg Motoren Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm Blauberg GE-B250B-EC-M1 250mm DC Plug Ntxuam hauv Suav teb. Txais tos mus yuav cov khoom lag luam wholesale zoo tshaj plaws hauv Suav teb ntawm no thiab tau txais cov lus hais los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
Cov ntaub ntawv yooj yim
| Qauv | GE-B250B-EC-M1 | Yam khoom | DC rov qab centrifugal plug ntxuam |
| Rated Voltage | 48 VDC | Voltage Ntau | Tsis tau teev tseg |
| Nominal Ceev | 2250 RPM | Max. Lub zog nkag | 150 W |
| Max. Input Tam sim no | 3.2 A | Suab Level | 72 dB (A) |
| Max. Huab cua | Kwv yees li . 1440 m³/h | Max. Static Siab | Kwv yees . 730 Pa |
| Ambient Kub | -25℃rau +60 degree | Kev tiv thaiv | IP55 |
Kev piav qhia
| Qhov ntev | 300 × 300 × 131 hli | Tsav | Sab nraud rotor DC lub cev muaj zog |
| Cov khoom siv impeller | Yas | Kev taw qhia Airflow | Tag nrho ib ncig |
| Kev sib hloov | Clockwise, saib rau rotor | Rotor Nto | Cov tshuaj tsuag yas |
| Rwb thaiv tsev Class | Chav B | Hom kev ua haujlwm | S1 |
| Cov kabmob | Kev tu- pob bearing pub dawb | Cable Ntev | 500 ± 20 hli |
| Kev khiav dej num | 5% -90% RH | Installation Txoj hauj lwm | Ib qho |
| Tswj cov tswv yim | 0-10 VDC / PWM | Ceev lus teb | FG tso zis |
| Kev tiv thaiv lub cev muaj zog | Xauv rotor, thermal, tshaj / undervoltage, overcurrent thiab mos pib | Ua raws | CCC, CE thiab RoHS |
Khoom siv
| 1 | Kev them nqi | 9 | Cov khoom siv cua txias Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Qhov project chav tsev |
| 3 | FFU Project | 11 | UAS Project |
| 4 | Khoos phis tawj chav txias | 12 | Cua Purifier Project |
| 5 | Rail Transit Air-Kub txias | 13 | Heat Exchanger Project |
| 6 | Cov Khoom Siv Hluav Taws Xob | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Txias Project |
| 8 | Cov khoom siv cua tshuab ua pa | 16 | Industrial Cooling System |
Huab cua Performance
Zuag qhia tag nrho Dimensions
Kev sib txuas hluav taws xob
Download tau
GE-B250B-EC-M1-Technical-Specification
