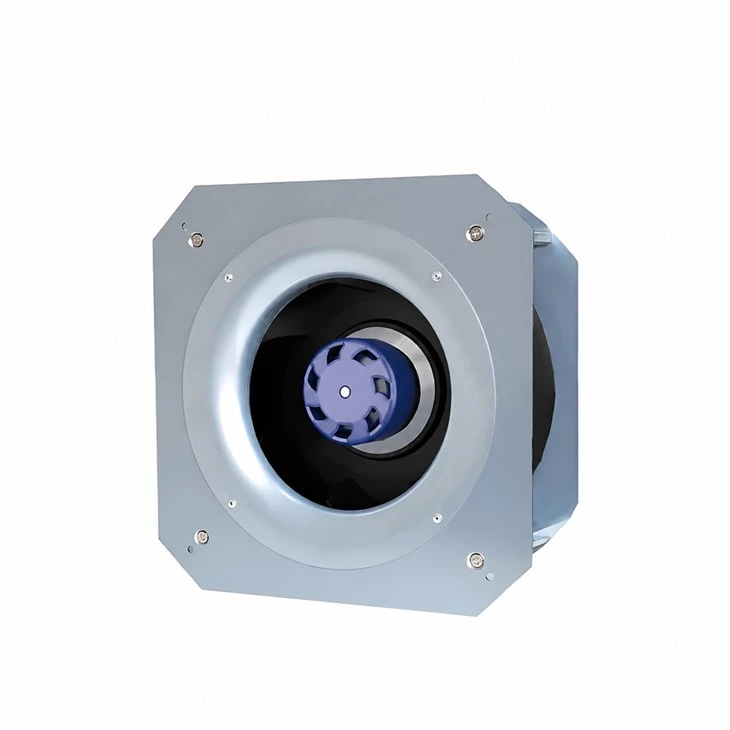

Suzhou Blauberg Motoren Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm Blauberg GD-B133A-EC-M0 133mm DC Plug Ntxuam hauv Suav teb. Txais tos mus yuav cov khoom lag luam wholesale zoo tshaj plaws hauv Suav teb ntawm no thiab tau txais cov lus hais los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
Cov ntaub ntawv yooj yim
| Qauv | GD-B133A-EC-M0 | Yam khoom | DC rov qab centrifugal plug ntxuam |
| Rated Voltage | 24 VDC | Nominal Ceev | 4400 RPM |
| Max. Lub zog nkag | 53 W | Max. Input Tam sim no | 2.22 A |
| Max. Huab cua | Kwv yees li . 420 m³/h | Max. Static Siab | Kwv yees . 430 Pa |
| Suab Level | 70 dB (A) | Ambient Kub | -25℃rau +60 degree |
| Kev tiv thaiv | IP55 | Rwb thaiv tsev Class | Chav B |
Kev piav qhia
| Qhov ntev | 165 × 165 × 120.8 hli | Hom Tsav | Sab nraud rotor DC lub cev muaj zog |
| Cov khoom siv impeller | Yas | Kev sib hloov | Clockwise, saib rau rotor |
| Rotor Nto | Cov tshuaj tsuag yas | Hom kev ua haujlwm | S1 |
| Cov kabmob | Pob bearing | Cable Ntev | 500 ± 20 hli |
| Kev khiav dej num | 5% -90% RH | Installation Txoj hauj lwm | Ib qho |
| Tswj cov tswv yim | 0-10 VDC / PWM | Ceev lus teb | FG tso zis |
| Kev tiv thaiv lub cev muaj zog | Xauv rotor, thermal, tshaj / undervoltage, overcurrent thiab mos pib | Ua raws | RoHS |
Khoom siv
| 1 | Kev them nqi | 9 | Cov khoom siv cua txias Project |
| 2 | Kitchen Smoke Exhaust System | 10 | Qhov project chav tsev |
| 3 | FFU Project | 11 | UAS Project |
| 4 | Khoos phis tawj chav txias | 12 | Cua Purifier Project |
| 5 | Rail Transit Air-Kub txias | 13 | Heat Exchanger Project |
| 6 | Cov Khoom Siv Hluav Taws Xob | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Txias Project |
| 8 | Cov khoom siv cua tshuab ua pa | 16 | Industrial Cooling System |
Huab cua Performance
Zuag qhia tag nrho Dimensions
Kev sib txuas hluav taws xob
Download tau
GD-B133A-EC-M0-Technical-Specification
