Suzhou Blauberg Motoren Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm 190mm dc rov qab muaj cua txias kiv cua hauv Suav teb. Txais tos mus yuav cov khoom lag luam wholesale zoo tshaj plaws hauv Suav teb ntawm no thiab tau txais cov lus hais los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.
Cov ntaub ntawv yooj yim
| Qauv No. | BD-B190B-EC-03 | Flow Direction | Centrifugal |
| Siab | Nruab Nrab Siab | Chaw taws teeb tswj | Tsis muaj chaw taws teeb tswj |
| Kev siv | Rau kev sim, rau cua txias, rau kev tsim khoom | Hom kiv cua | DC Forward Centrifugal Ntxuam |
| Pob | Pallet | Pob Loj | 110 * 110 * 110 hli |
| Cov cim lag luam | Blauberg | Keeb kwm | Tuam Tshoj |
| HS Code | 8414593000 | Muaj Peev Xwm Ntau Lawm | 50000 / xyoo |
Kev piav qhia
| Dimension: | 190 * 190 * 101.8 hli | Hom kev ua haujlwm: | S1 |
| Khoom siv impeller: | PA6+GF | Cov kabmob: | pob bearings |
| Khoom siv tsev: | SPCC + S45C | Kev tiv thaiv lub cev muaj zog: | tus kheej- rov pib dua TOP wired hauv |
| Kev taw qhia ntawm kev sib hloov: | clockwise, pom ntawm rotor | Cua Flow: | 900 M³/H |
| Number of Blades: | 7 | Static Pressure: | 910 pab |
| Tswj ceev: | 0-10VDC PWM | Lub neej expectancy: | 50,000 teev (L10) |
| Ua haujlwm voltage: | 16-28 VDC | Kev khiav dej num: | 5% -90% RH |
| Hom kev tiv thaiv: | IP55 | Teeb liab tso zis: | FG (Frequency Generator) |
| Rwb thaiv tsev chav kawm: | B | Kev lees paub tseeb: | UL, CE, ROHS, CCC, ISO |
Khoom siv
| 1 | Kev them nqi | 9 | Cov khoom siv cua txias Project |
| 2 | Chav ua noj haus pa tawm system | 10 | Qhov project chav tsev |
| 3 | FFU Project | 11 | AHU (Air Handing Unit) Project |
| 4 | Lub tshuab computer txias | 12 | Cua Purifier Project |
| 5 | Cua- kiv cua txias rau cov tsheb thauj neeg caij tsheb ciav hlau | 13 | Heater Exchanger Project |
| 6 | Cov khoom siv hluav taws xob | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Txias Project |
| 8 | Cov Cuab Yeej Siv Cuab Yeej Cuab Yeej | 16 |
P-Q

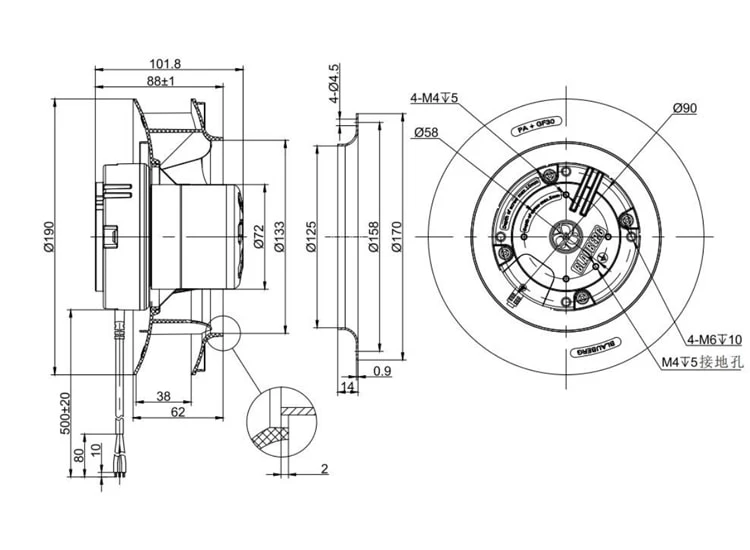

Zuag qhia tag nrho Dimensions
Kev sib txuas hluav taws xob
Download tau
BD-B190B-EC-03 Khoom Specification
