SL-F120B-EC-02 yog ib qho kev sib cog lus rau pem hauv ntej-kov EC ib leeg inlet centrifugal blower rau qhov cua, cua- tuav thiab khoom siv-tso txias. Nws EC lub cev muaj zog txhawb nqa kev ua haujlwm nrawm nrawm los ntawm 0-10 VDC lossis PWM tswj thiab muab cov lus tawm tswv yim tachometer.
Cov ntaub ntawv yooj yim
| Qauv | SL-F120B-EC-02 | Hom | EC ib leeg inlet centrifugal blower |
| Tsav | EC072AC230V 115W | Tsev | Galvanized ntawv |
| Impeller | 34 luj | Cov kabmob | Pob bearing |
| Kev tiv thaiv / rwb thaiv tsev | IP55 / Chav B | Hom kev ua haujlwm | S1 |
Cov ntaub ntawv ntsuas
| Rated voltage | 230 VAC | Voltage ntau | 184-276 VAC |
| Ntau zaus | 50/60 Hz | Rated ceev | 3800 +/-5% RPM |
| Max input zog | 115 W | Max input tam sim no | 0.9 A |
| Suab theem | 63 dB (A) | Maximum airflow | 440 m³/h |
| Qhov siab tshaj plaws zoo li qub | 570 ua | Qhov hnyav | 1.75 kg ib |
| Ua haujlwm kub | -25℃rau +60 degree | Cia kub | -40℃rau +80 degree |
Kev piav qhia
| Lub cev muaj zog / impeller | Integrated electronically commutated motor nrog rau pem hauv ntej- nkhaus impeller |
| Kev taw qhia ntawm kev sib hloov | Clockwise, saib mus rau lub rotor |
| Kev tiv thaiv lub cev muaj zog | Xauv-rotor, thermal, tshaj-voltage, nyob rau hauv-voltage thiab tshaj- tiv thaiv tam sim no; pib mos |
| Voltage tso zis | 10 VDC, siab tshaj 10 mA |
| Ceev -Control Input | 0-10 VDC or PWM; PWM amplitude 10 V |
| Kev khiav dej num | 5% -90% RH |
| Cia Humidity | 5% -95% RH |
| Cable Ntev | 500 +/-20 hli |
| Ua raws | CCC, CE thiab RoHS |
Khoom siv
| 1. Them nqi | 9. Cov khoom siv cua txias qhov project |
| 2. Chav ua noj haus luam yeeb | 10. Qhov project qhov cua tshuab |
| 3. FFU Project | 11. AHU (Air Handling Unit) Project |
| 4. Lub tshuab computer txias | 12. Cua Purifier Project |
| 5. Cua-Tswv Cua Txias rau Rail Transit Carriers | 13. Heat Exchanger Project |
| 6. Cov khoom siv hluav taws xob | 14. Telecom Container Project |
| 7. FanGrid Project | 15. Data Center Cooling Project |
| 8. Cov Khoom Siv Cuab Yeej Cuab Yeej | 16. Tswj txee txias qhov project |

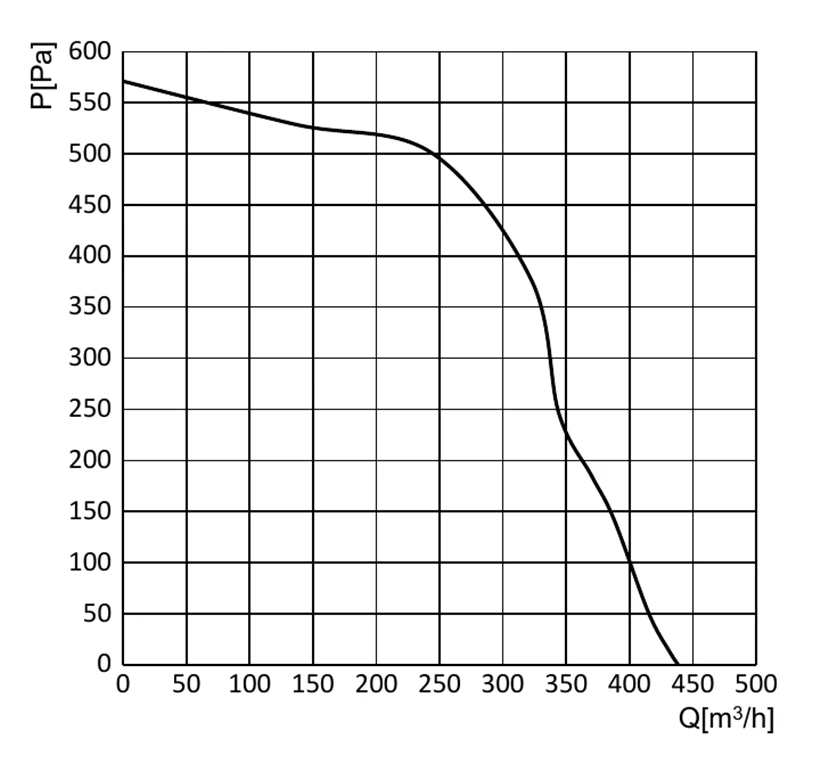

Huab cua Performance
Zuag qhia tag nrho Dimensions

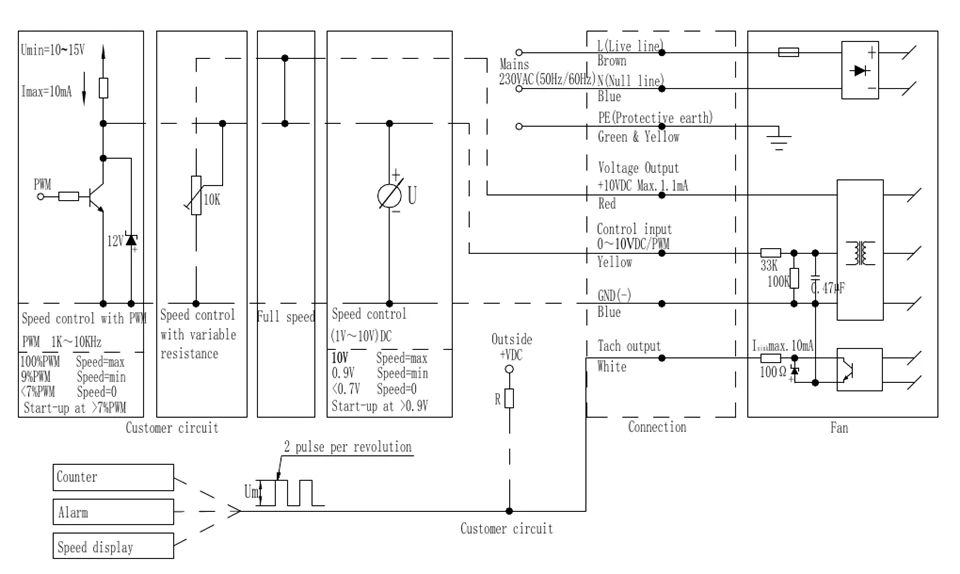

Kev sib txuas hluav taws xob
| PE | Ntsuab/daj - Lub ntiaj teb tiv thaiv |
| U1 / U2 | Xim av L / Xiav N - Fais fab mov |
| U4 | Liab +10 VDC tsau voltage tso zis |
| U5 | Yellow 0-10 VDC / PWM ceev tswj input |
| U6 | Dawb tach tso zis, 2 pulses ib kiv puag ncig |
| U7 | Blue GND siv hauv av |
Kev tswj ceev ceev
Kev ceev tuaj yeem tswj tau los ntawm PWM, qhov hloov pauv hloov pauv lossis 1-10 VDC teeb liab. Ua raws li daim duab kab kos. Kev pib tshwm sim saum toj no kwv yees li 0.9 V lossis 9% PWM.
Nco tseg
- Txuas lub zog thiab tswj cov kab nruj nruj raws li daim duab kos.
- Tsis txhob txuas lub teeb liab dawb xaim ncaj qha mus rau lub teeb liab liab lossis ib qho hluav taws xob DC sab nraud.
- Tsis txhob kov lub impeller lossis rotor tom qab lub kiv cua muaj zog.
- Xyuas tias lub cev muaj zog tau teeb tsa ruaj ntseg ua ntej siv lub zog.
- Tsis txhob rub, poob, tsoo lossis yaug lub cev muaj zog lossis cable.
- Ua ntej ua haujlwm thawj zaug, tig lub rotor ntawm tes thiab paub meej tias tsis muaj kev sib tsoo, cuam tshuam lossis jamming.
- Khaws cov khoom kom deb ntawm cov menyuam yaus.
Lub neej thiab kev saib xyuas, Warranty
- Lub kiv cua tsim lub neej yog 50,000 teev nyob rau hauv cov xwm txheej tshwj xeeb thiab lub neej tiag tiag nyob ntawm qhov kub, av noo, kev teeb tsa thiab kev thauj khoom.
- Ntxuav thiab tuav lub kiv cua txhua 3-6 lub hlis raws li ib puag ncig.
- Cov kiv cua ua tiav yog them los ntawm ob- xyoo lav rau cov khoom lag luam- tsis zoo; kev puas tsuaj tshwm sim los ntawm kev tuav tsis raug, tsis raug tso cai disassembly, txiv neej- ua kev puas tsuaj los yog quab yuam majeure raug cais tawm.
