Cov ntaub ntawv yooj yim
| Qauv No. | Los ntawm -A350C-EC-05S | Flow Direction | Centrifugal |
| Siab | Tsawg Siab | Chaw taws teeb tswj | Tsis Muaj Chaw Taws Teeb |
| Kev siv | Rau kev sim, rau cua txias, rau kev tsim khoom | Hom kiv cua | EC Axial Ntxuam |
| Pob | Pallet | Pob Loj | 110 * 110 * 110 hli |
| Cov cim lag luam | Blauberg | Keeb kwm | Tuam Tshoj |
| HS Code | 8414593000 | Muaj Peev Xwm Ntau Lawm | 50000 / xyoo |
Kev piav qhia
| Dimension: | 422 * 422 * 162 hli | Hom kev ua haujlwm: | S1 |
| Khoom siv impeller: | Yas | Cov kabmob: | pob bearings |
| Khoom siv tsev: | SPCC + S45C | Kev tiv thaiv lub cev muaj zog: | tus kheej- rov pib dua TOP wired hauv |
| Kev taw qhia ntawm kev sib hloov: | clockwise, pom ntawm rotor | Cua Flow: | 3060.6 CFM / 5200 M³ / H |
| Number of Blades: | 5 | Static Pressure: | 2.48 inH2O / 620 Pa |
| Tswj ceev: | 0-10VDC PWM | Lub neej expectancy: | 50,000 teev (L10) |
| Ua haujlwm voltage: | 184 ~ 270 VAC | Kev khiav dej num: | 5% -90% RH |
| Hom kev tiv thaiv: | IP55 | Teeb liab tso zis: | FG (Frequency Generator) |
| Rwb thaiv tsev chav kawm: | F | Kev lees paub tseeb: | UL, CE, ROHS, CCC, ISO |
Khoom siv
| 1 | Kev them nqi | 9 | Cov khoom siv cua txias Project |
| 2 | Chav ua noj haus pa tawm system | 10 | Qhov project chav tsev |
| 3 | FFU Project | 11 | AHU (Air Handing Unit) Project |
| 4 | Lub tshuab computer txias | 12 | Cua Purifier Project |
| 5 | Cua- kiv cua txias rau cov tsheb thauj neeg caij tsheb ciav hlau | 13 | Heater Exchanger Project |
| 6 | Cov khoom siv hluav taws xob | 14 | Telecom Container Project |
| 7 | FanGrid Project | 15 | Data Center Txias Project |
| 8 | Cov Cuab Yeej Siv Cuab Yeej Cuab Yeej | 16 |

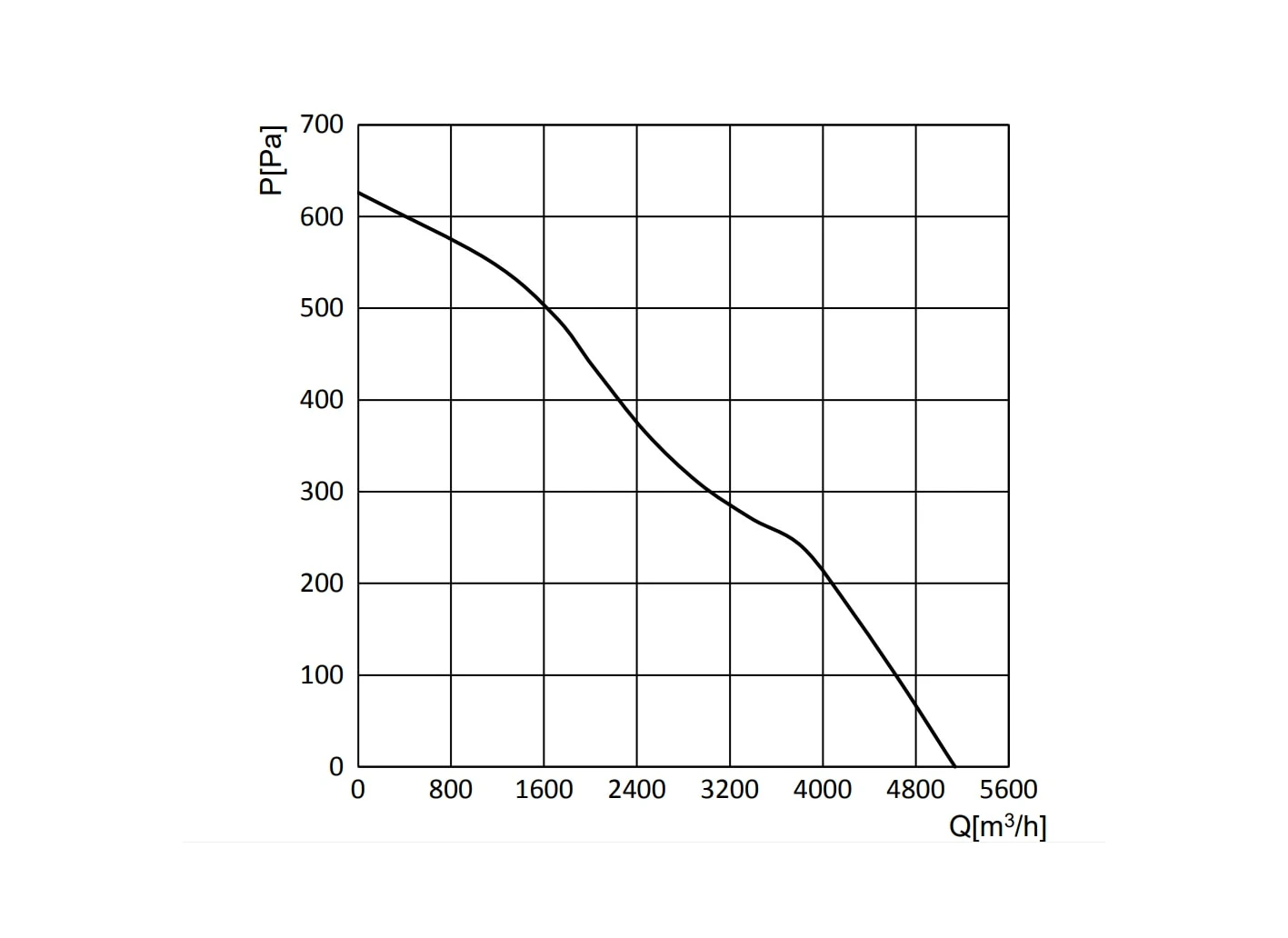

P-Q
Zuag qhia tag nrho Dimensions

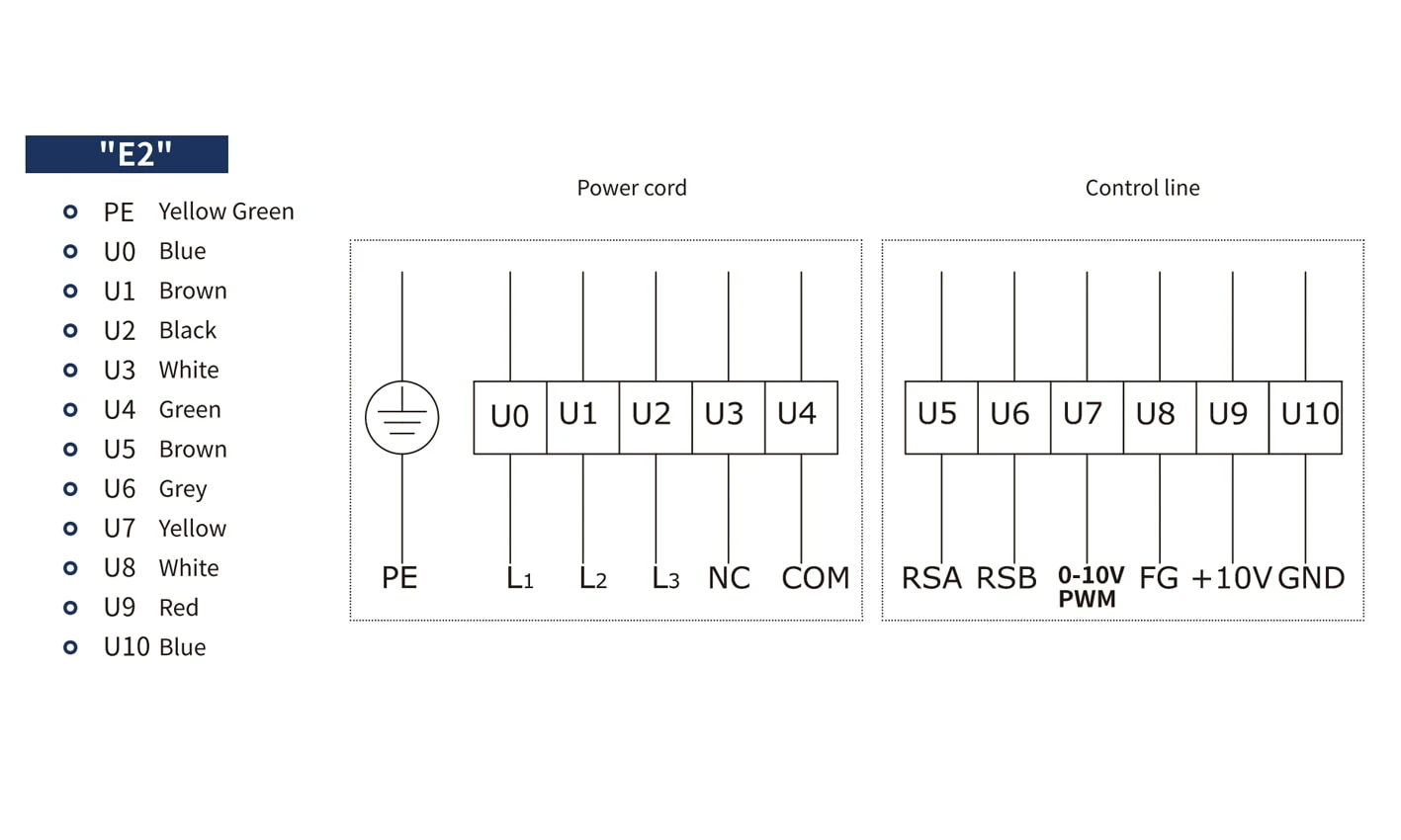

Kev sib txuas hluav taws xob
Download tau
Los ntawm -A350C-EC-05S Khoom Specification
